Lumacode cable for Analog RGBtoHDMI

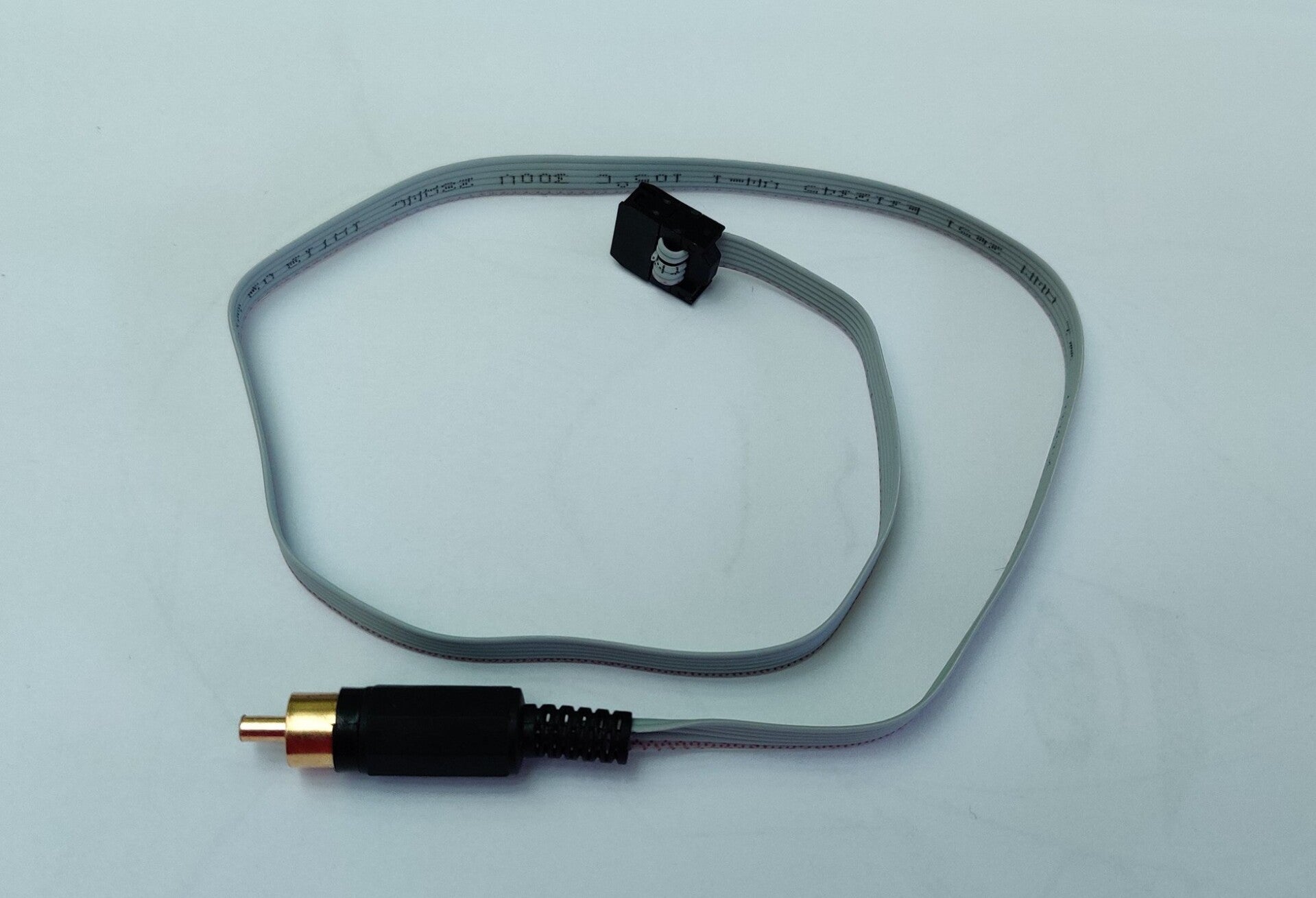

This is a cable for the RGBtoHDMI with a 6-pin analog input to connect to monochrome or LumaCode video source. Note that you do not need this if your RGBtoHDMI already comes with a cable that has an RCA plug.

This is intended as an accessory for any of my LumaCode mod kits (like the VIC-II-dizer) to connect it to an RGBtoHDMI upscaler that has an 6-pin analog input.

This cable is wired up in a specific way to allow the RGBtoHDMI to differentiate between 4 levels of luma in addition to detect the sync pulse on the luma signal as well. This is necessary for the LumaCode signal to be correctly received.
